Characteristic:
● Compact structure and exquisite appearance
● No need for auxiliary equipment such as cooling towers and water pumps, especially suitable for use in areas with poor water quality or water shortage
● Air cooled chillers are suitable for environments with minimal temperature and humidity changes, and are particularly suitable for installation in small spaces. Its installation and maintenance are relatively simple, but its energy efficiency is relatively low.
Parameter:
| Refrigerant Capacity | Model/Parameter | BMW1A | BMW2A | BMW3A | BMW5A | BMW8A | BMW10A | BMW12A | BMW15A | BMW20A |
| kw/hr | 3 | 6 | 9 | 15 | 24 | 30 | 36 | 45 | 60 | |
| Kcal | 2850 | 5700 | 8550 | 14250 | 22800 | 28500 | 34200 | 42750 | 57000 | |
| Range of Controlling Temperature | Standard models flow water at 7-12℃ (below 7℃, please consult) | |||||||||
| Power Supply | 1N-220V 50Hz/60Hz | 5N-380V 50Hz/60Hz | ||||||||
| Total Power | KW | 1.27 | 2.02 | 2.92 | 4.89 | 8.42 | 9.92 | 11.42 | 14.55 | 18.96 |
| Control Way | Expansion Valve | |||||||||
| Compressor | Type | Hermetic scroll type or piston | ||||||||
| Quantity | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 2 | 2 | |
| Brand |   | |||||||||
| Power（KW） | 0.75 | 1.50 | 2.25 | 3.75 | 6.00 | 7.50 | 9.00 | 11.25 | 15.00 | |
| Refrigerant | R220/R404A/R507（For other refrigerants, consult the salesman） | |||||||||
| Condenser | Form | Efficient brass setscorrugated aluminm fin | ||||||||
| Evaporator | Tank Capacity（L） | 30 | 35 | 50 | 60 | 120 | 120 | 150 | 270 | 270 |
Diameter of inlet and outlet water pipe | DN20 | DN20 | DN20 | DN20 | DN40 | DN40 | DN40 | DN40 | DN50 | |
| Circulation Water Pump | Power（KW） | 0.37 | 0.37 | 0.37 | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 | 2.2 |
| Water Flow Rate（m³） | 6 | 6 | 6 | 12 | 12 | 8 | 8 | 8 | 8 | |
| Pump Head（m） | 22 | 22 | 22 | 22 | 22 | 27 | 27 | 35 | 45 | |
| Brand |   | |||||||||

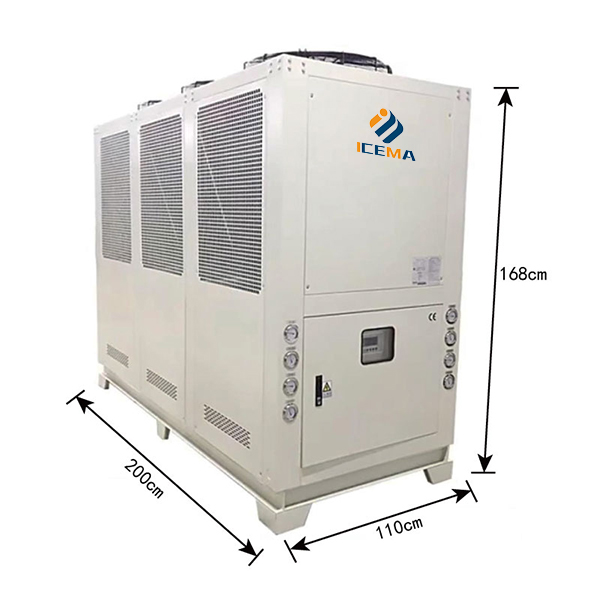

| Unit size | L/cm | 77 | 77 | 122 | 125 | 158 | 158 | 158 | 177 | 200 |
| W/cm | 51 | 51 | 60 | 64 | 75 | 75 | 75 | 85 | 110 | |
| H/cm | 87 | 87 | 120 | 131 | 150 | 150 | 150 | 174 | 168 | |
| Fan size（MM） | 350 | 350 | 350 | 400 | 450 | 500 | 500 | 550 | 630 | |
Note: Due to the continuous update of technology, there will be some differences between the physical object and parameters, please refer to the physical object as the criterion | ||||||||||
Application Areas:
Chemical fiber industry:
Freeze relatively dry air and ensure product quality.
Vacuum coating:
It can be used to control the temperature of vacuum coating machines to ensure high quality of plated parts.
Plastic industry:
Accurately control the temperature of each plastic processing, shorten the plastic cycle, and ensure stable quality.
Electroplating industry:
It can control the temperature of electroplating and increase smoothness and density.
Food industry:
Used for high-speed cooling after food processing, so that food can quickly adapt to packaging requirements, in addition to controlling the temperature of fermented food, etc.
Mechanical industry:
Used to control the pressure oil temperature of the hydraulic system, extend service life, improve mechanical lubrication efficiency, and reduce wear.
Construction industry:
Can supply concrete for chilled water, so that the structure of concrete is more in line with construction requirements, effectively enhancing its hardness and toughness.
Electronic industry:
industrial chillers can stabilize the molecular structure of electronic components on the growth line, improve the pass rate, and are mostly used in the ultrasonic cleaning industry to effectively prevent the volatilization of expensive cleaning agents from causing harm to people.
