Characteristic:
● High Efficiency and Reliability: This industrial water chiller is designed with an automatic control system, ensuring stable and efficient operation. The unit features a 4.89kw power capacity, making it suitable for various industrial applications.
● Durable and Long-Lasting: The chiller is built with high-quality core components, including a PLC, engine, bearing, gearbox, motor, pressure vessel, gear, and pump, all of which come with a 1-year warranty for added peace of mind.
● Customizable and Versatile: The chiller is available in various configurations, including air-cooled and water-cooled options, and can be customized to meet specific user requirements. The refrigerant can be R220, R404A, R507, or other types, depending on the user's preference.

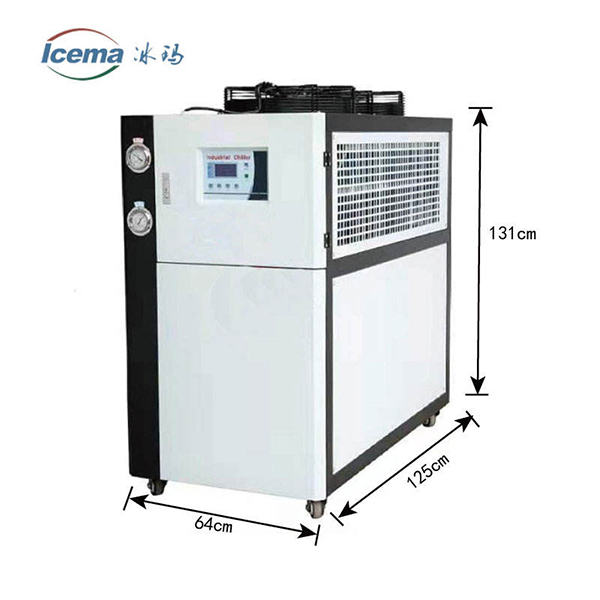

● Easy to Install and Maintain: The unit is designed for easy installation and maintenance, with a compact size of 1250x640x1310mm and a weight of 80kg. A machinery test report and video outgoing-inspection are provided to ensure a smooth installation process.
● Wide Range of Applications: This industrial water chiller is suitable for various industries, including hotels, garment shops, building material shops, manufacturing plants, food and beverage factories, farms, restaurants, home use, retail, food shops, printing shops, construction works, energy and mining, and advertising companies, making it a versatile solution for different business needs.
Parameter:
| Air Cooling Water Chiller Parameter |
| Model Parameter | BMW1A | BMW2A | BMW3A | BMW5A | BMW8A | BMW10A | BMW12A | BMW15A | BMW20A |
| Refrigerant Capacity | KW/hr | 3 | 6 | 9 | 15 | 24 | 30 | 36 | 45 | 60 |
| Kcal | 2850 | 5700 | 8550 | 14250 | 22800 | 28500 | 34200 | 42750 | 57000 |
| Range of Controlling Temperature | Standard models flow water at 7-12℃ (below 7℃, please consult) |
| Power Supply | 1N-220V 50Hz/60Hz | 5N-380V 50Hz/60Hz |
| Total Power | KW | 1.27 | 2.02 | 2.92 | 4.89 | 8.42 | 9.92 | 11.42 | 14.55 | 18.96 |
| Control Way | Expansion Valve |
| Compressor | Type | Hermetic scroll type or piston |
| Quantity | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 2 | 2 |
| Brand | Panasonic | Copeland |
| Power KW | 0.75 | 1.50 | 2.25 | 3.75 | 6.00 | 7.50 | 9.00 | 11.25 | 15.00 |
| Refrigerant | R220/R404A/R507 (For other refrigerants, consult the salesman) |
| Condenser | Form | Efficient brass setscorrugated aluminum fin |
| Evaporator | Tank Capacity (L) | 30 | 35 | 50 | 60 | 120 | 120 | 150 | 270 | 270 |

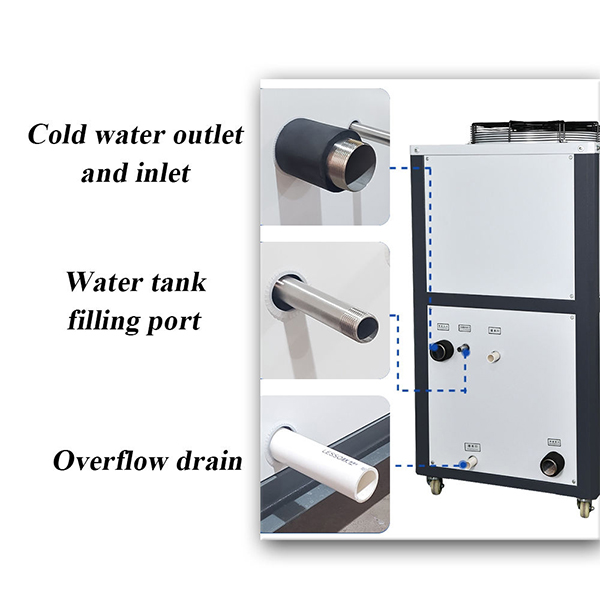

| Diameter of inlet and outlet water pipe | DN20 | DN20 | DN20 | DN20 | DN40 | DN40 | DN40 | DN40 | DN50 |
| Circulating Water Pump | Power KW | 0.37 | 0.37 | 0.37 | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 | 2.2 |
| Water Flow Rate m³ | 6 | 6 | 6 | 12 | 12 | 8 | 8 | 8 | 8 |
| Pump Head m | 22 | 22 | 22 | 22 | 22 | 27 | 27 | 35 | 45 |
| Brand | Muchuan | Nanfang |
| Unit Size | L/cm | 77 | 77 | 122 | 125 | 158 | 158 | 158 | 177 | 200 |
| W/cm | 51 | 51 | 60 | 64 | 75 | 75 | 75 | 85 | 110 |
| H/cm | 87 | 87 | 120 | 131 | 150 | 150 | 150 | 174 | 168 |
| Fan Size (MM) | 350 | 350 | 350 | 400 | 450 | 500 | 500 | 550 | 630 |
| Note: Due to the continuous update of technology, there will be some differences between the physical object and parameters, please refer to the physical object as the criterion |
Application Areas:
| 1. Plastic industry | 2. Electronics industry | 3. Electroplating industry | 4. Mechanical Engineering |
| 5. Construction industry | 6. Vacuum coating | 7. Food industry | 8. Pharmaceutical industry |
