Characteristic:

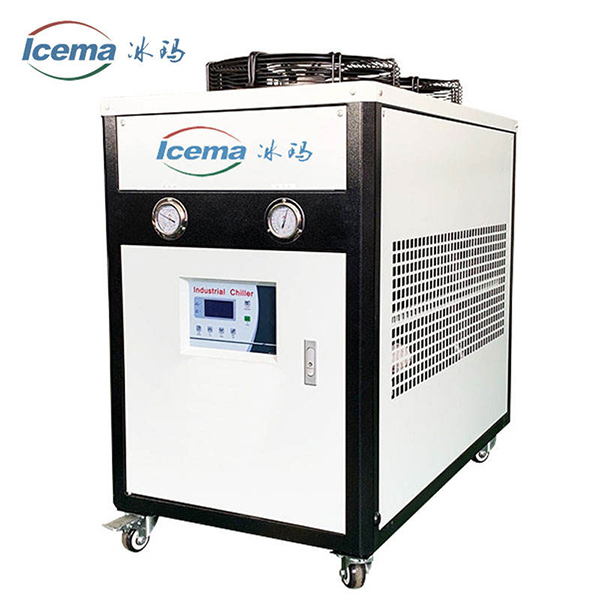

● Easy to Operate: This industrial water chiller is designed with user-friendliness in mind, making it simple for users to operate and maintain, even for those with limited technical expertise.
● Durable Core Components: The chiller features high-quality core components, including a PLC, engine, bearing, gearbox, motor, pressure vessel, gear, and pump, all backed by a comprehensive 1.5-year warranty for added peace of mind.
● Versatile Applicability: This water chiller is suitable for a wide range of industries, including hotels, garment shops, building material shops, machinery repair shops, manufacturing plants, and more, making it an excellent choice for businesses with diverse needs.
● Energy-Efficient Design: The chiller's condenser type, finned copper tube+low noise outer rotor fan, and fan size of 500mm ensure efficient cooling performance while minimizing noise levels, making it an ideal choice for applications where noise reduction is crucial.
● Comprehensive Support: The seller provides a machinery test report, video outgoing-inspection, and a 1.5-year warranty, giving customers confidence in their purchase and ensuring a smooth transaction process.
Parameter:
| Refrigerant Capacity | Model | BMW1A | BMW2A | BMW3A | BMW5A | BMW8A | BMW10A | BMW12A |
| BMW20AKW/hr | 3 | 6 | 9 | 15 | 24 | 30 | 36 | |
| Kcal | 2850 | 5700 | 8550 | 14250 | 22800 | 28500 | 34200 | |
| Range of controlling temperature | Standard models flow water at 7-12ºC (below 7ºC, please consult) | |||||||
| Power Supply | 1N-220V 50Hz/60Hz | 5N-380V 50Hz/60Hz | ||||||
| Total Power | KW | 1.27 | 2.02 | 2.92 | 4.89 | 8.42 | 9.92 | 11.42 |
| Control Way | Expansion valve | |||||||
| Compressor | Type | Hermetic scroll type or piston | ||||||
| Quantity | 1 | 1 | 1 | 1 | 2 | 2 | 3 | |
| Brand | Panasonic | |||||||
| Power KW | 0.75 | 1.50 | 2.25 | 3.75 | 6.00 | 7.5 | 9.00 | |
| Refrigerant | R22/R404A/R507A (For other refrigerants, consult the sales) | |||||||
| Condenser | Form | Efficient brass sets corrugated aluminm fin | ||||||
| Evaporator | Tank Capacity (L) | 30 | 35 | 50 | 60 | 120 | 120 | 150 |
| Diameter of inlet and outlet water pipe | DN20 | DN20 | DN20 | DN20 | DN40 | DN40 | DN40 | |
| Circulating Water Pump | Power KW | 0.37 | 0.37 | 0.37 | 0.75 | 0.75 | 1.1 | 1.1 |
| Water Flow Rate m³ | 6 | 6 | 6 | 12 | 12 | 8 | 8 | |
| Pump Head m | 22 | 22 | 22 | 22 | 22 | 27 | 27 | |
| Brand | Nuchuan Nanfang | |||||||

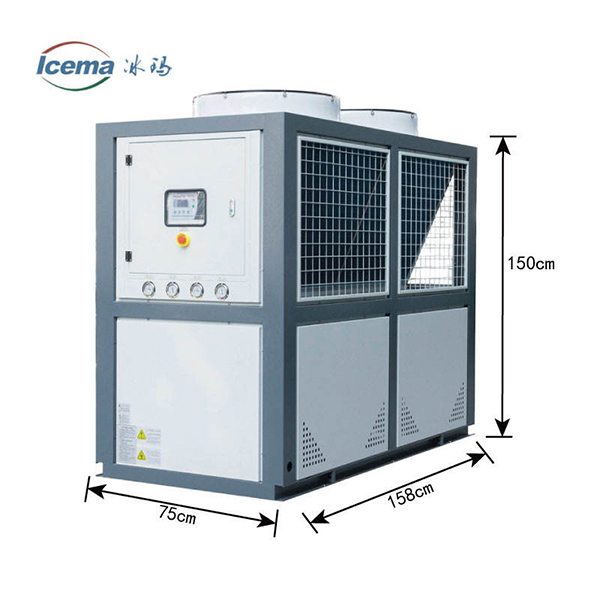

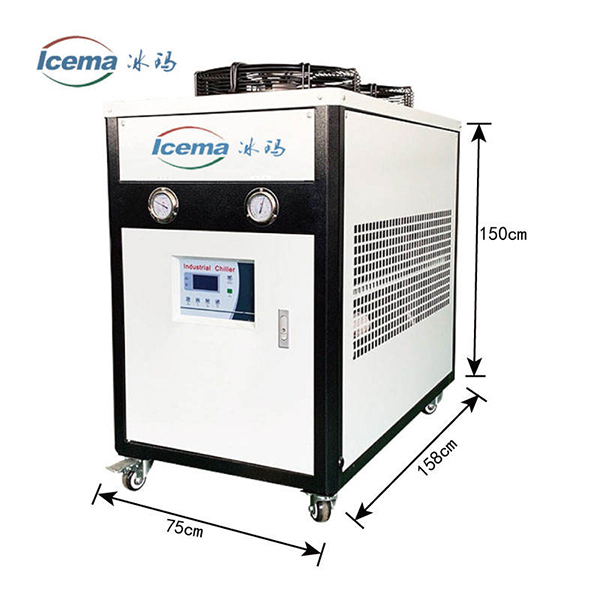

| Unit size | L/CM | 77 | 77 | 122 | 125 | 158 | 158 | 158 |
| W/CM | 51 | 51 | 60 | 64 | 75 | 75 | 75 | |
| H/CM | 87 | 87 | 120 | 131 | 150 | 150 | 150 | |
| Fan size (MM) | 350 | 350 | 350 | 400 | 450 | 500 | 500 | |
Application Areas:

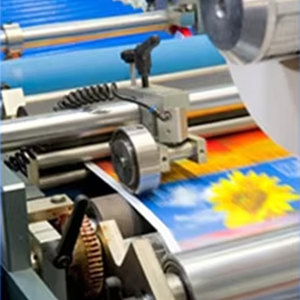

Printing industry

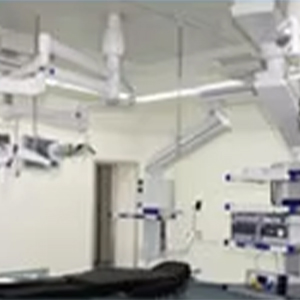

Medical industry

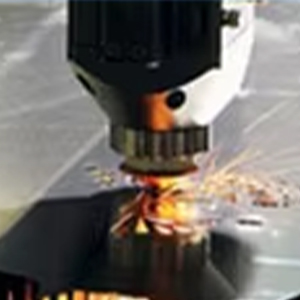

Laser industry

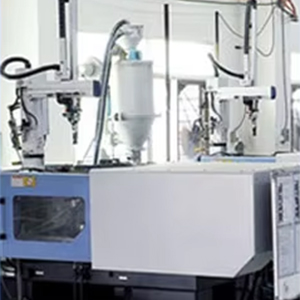

Injection molding industry
Welding industry

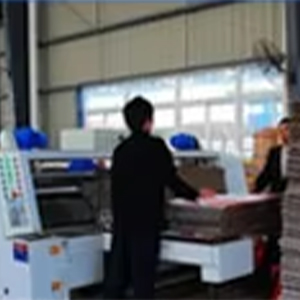

Packaging industry
